Mini Circuit Breaker UL489 Listed 10A C Curve 277VAC 60VDC 10kAIC DIN Rail Mount Non Polarized MCB Branch Circuit Protection, ControlGear CGMB1C10 (1 Pole CTrip 10 Amp)

Brand: ControlGear

Color: 1Pole "C"trip

Features:

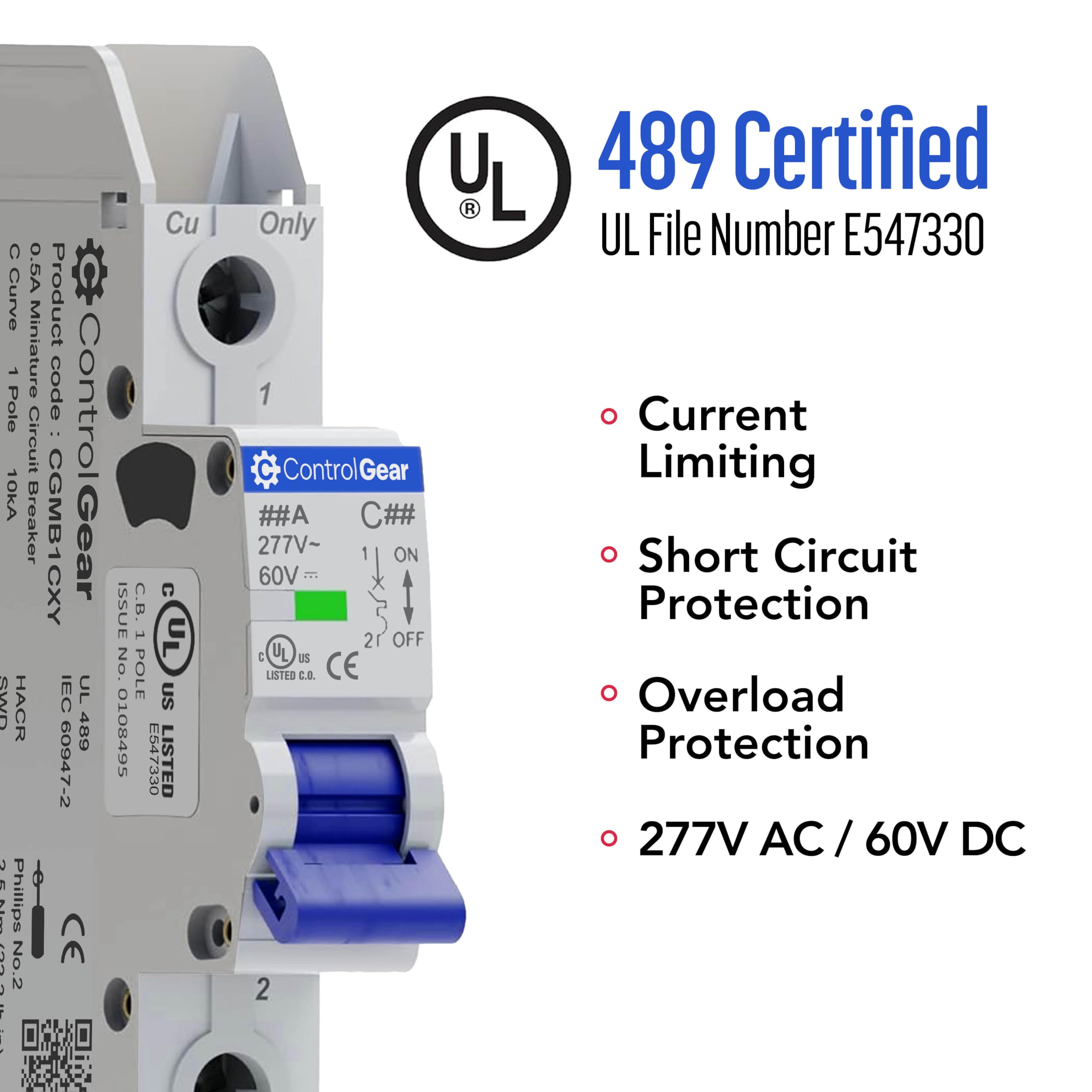

• UL-489 CERTIFIED: This miniature circuit breaker provides primary thermal overload and short circuit protection per National Electrical Code, Approved by Underwriters Laboratories for Branch Circuit Protection in US and Canada. . The 10 amp breaker is UL-489 Listed for Branch Circuit Protection, delivering reliable performance for critical systems.

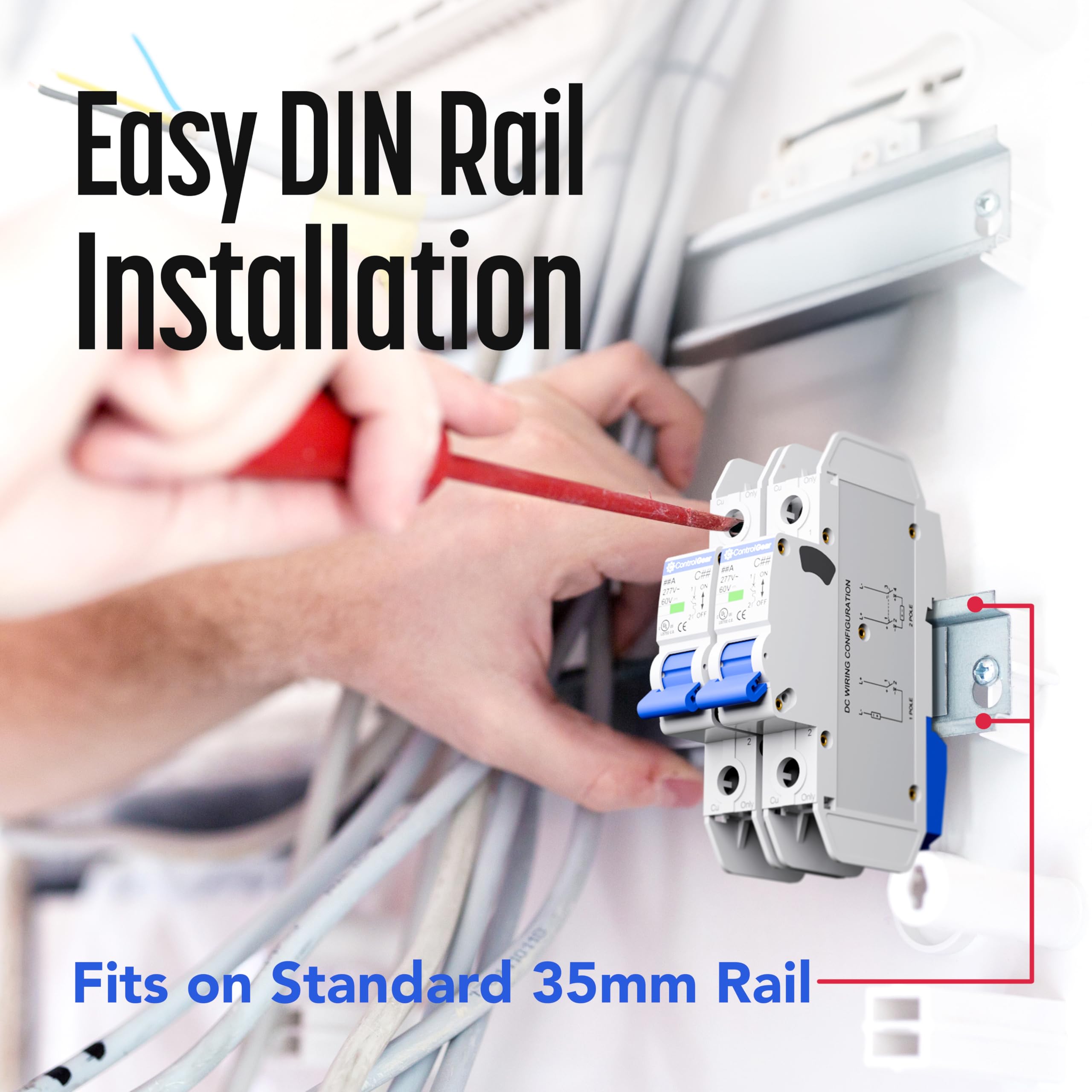

• MOUNTING OPTIONS: Easily install this circuit breaker by snapping onto a 35mm DIN rail (sold separately). The miniature circuit breaker may also be directly mounted to a panel for all circuit protection applications .

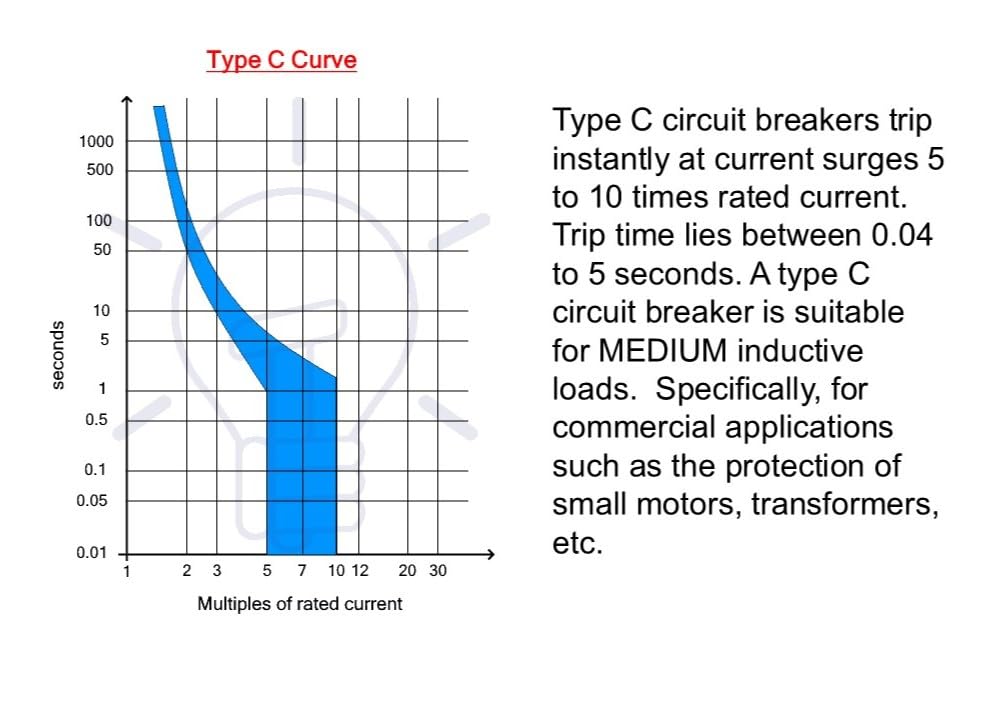

• TECHNICAL SPECS: This UL-489 certified 10 amp miniature circuit breaker is calibrated for a 1 Pole C Trip curve profile. Maximum operating voltage is 277VAC and 60VDC with 10kAIC short circuit rating. ControlGear miniature circuit breaker (Model CGMB1C10) is ideal for control panels, HVAC equipment and all applications requiring safe and reliable circuit protection.
• RAPID RESPONSE: ControlGear miniature circuit breakers are inherently current limiting, interrupting faults within the first half of the AC cycle, while conventional breakers require 1-2 AC cycles. This provides enhanced protection for power and control circuits.

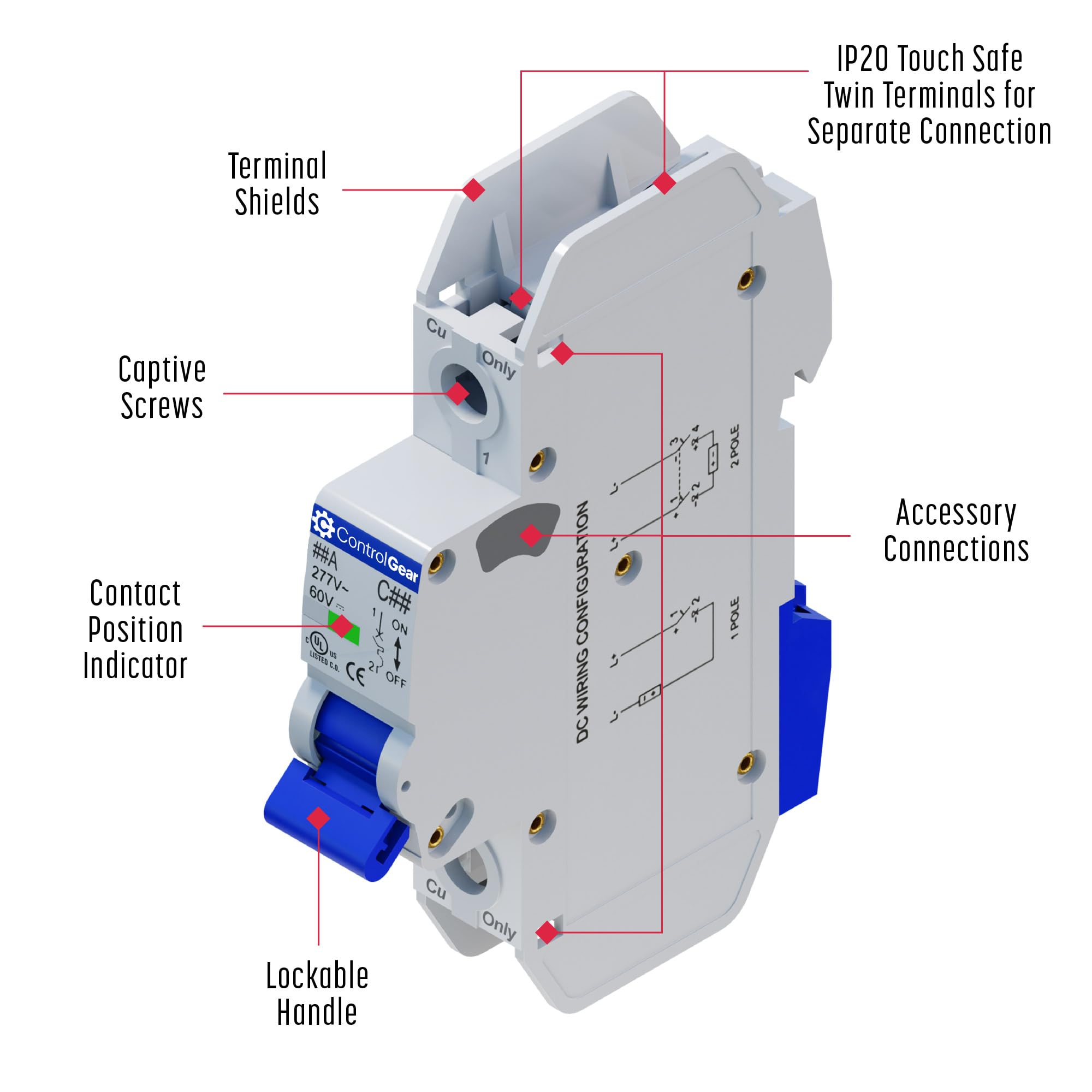

• AVAILABLE ACCESSORIES: Add sophisticated control features with a full line of snap-on accessories, including a shunt trip module, undervoltage release, auxiliary contact and alarm modules, a locking device, and bus bar primary connection system.

model number: 1Pole "C"trip 10Amps

Part Number: CGMB1C10

EAN: 0850074533108

Package Dimensions: 4.4 x 3.2 x 0.9 inches
