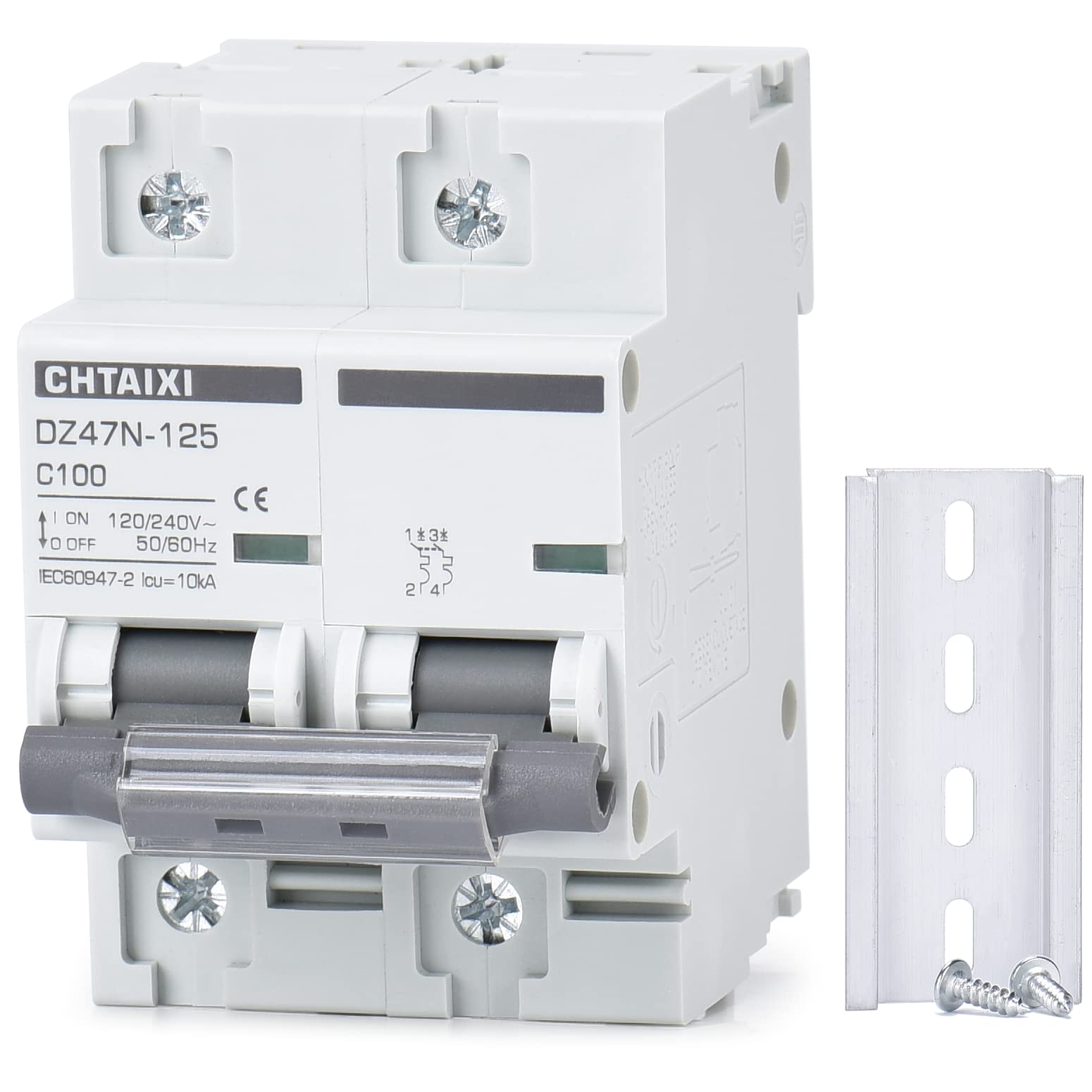

Chtaixi AC Miniature Circuit Breaker, 100 Amp 120V/240V 2 Pole

Brand: CHTAIXI

Color: Grey

Features:

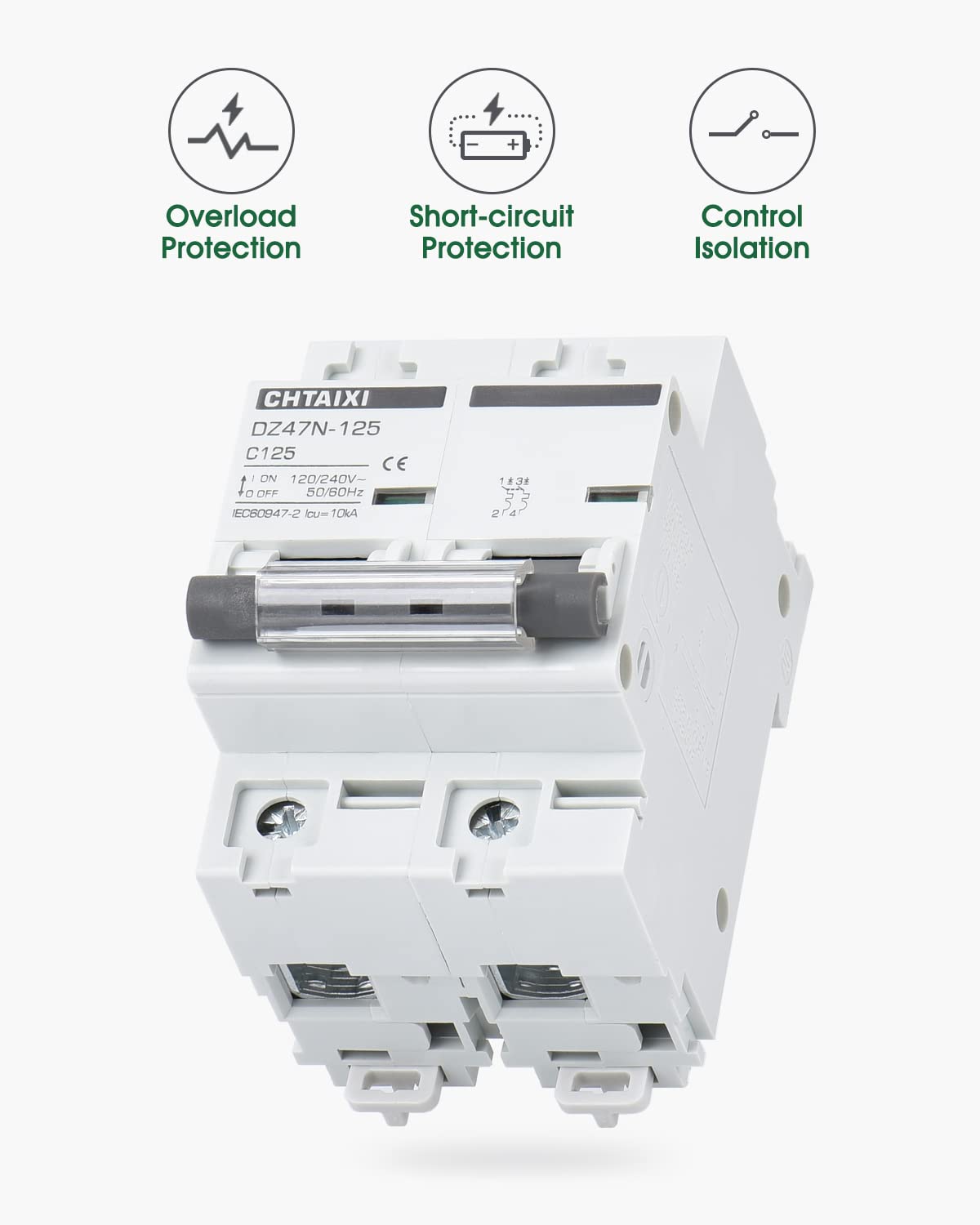

• FUNCTIONS: Used to protect 110V 120V 220V 230V AC circuit from overload and short circuit damage, and can also be used for control and isolation.

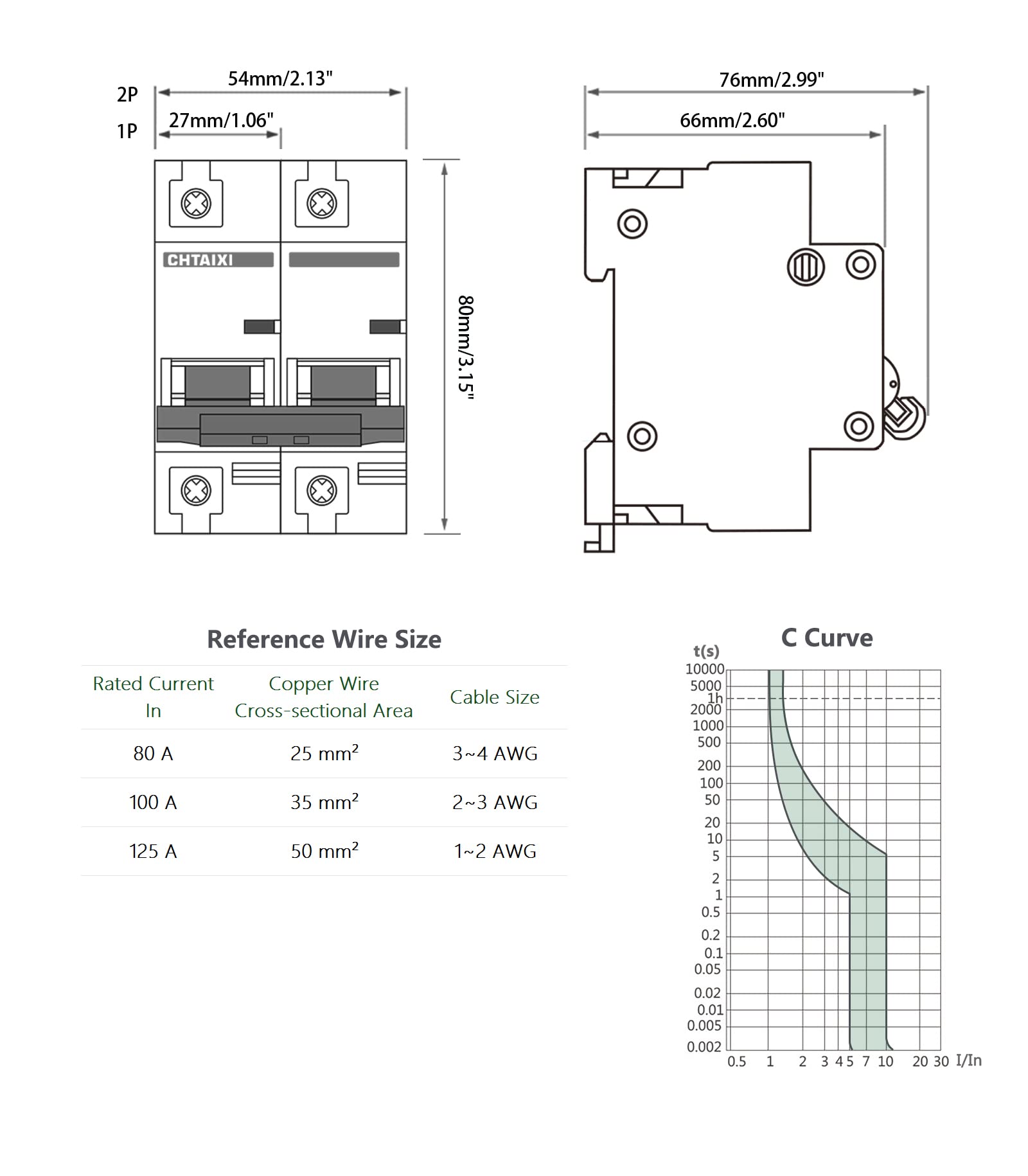

• CURVE C: Magnetic trip range 5-10 times rated current.

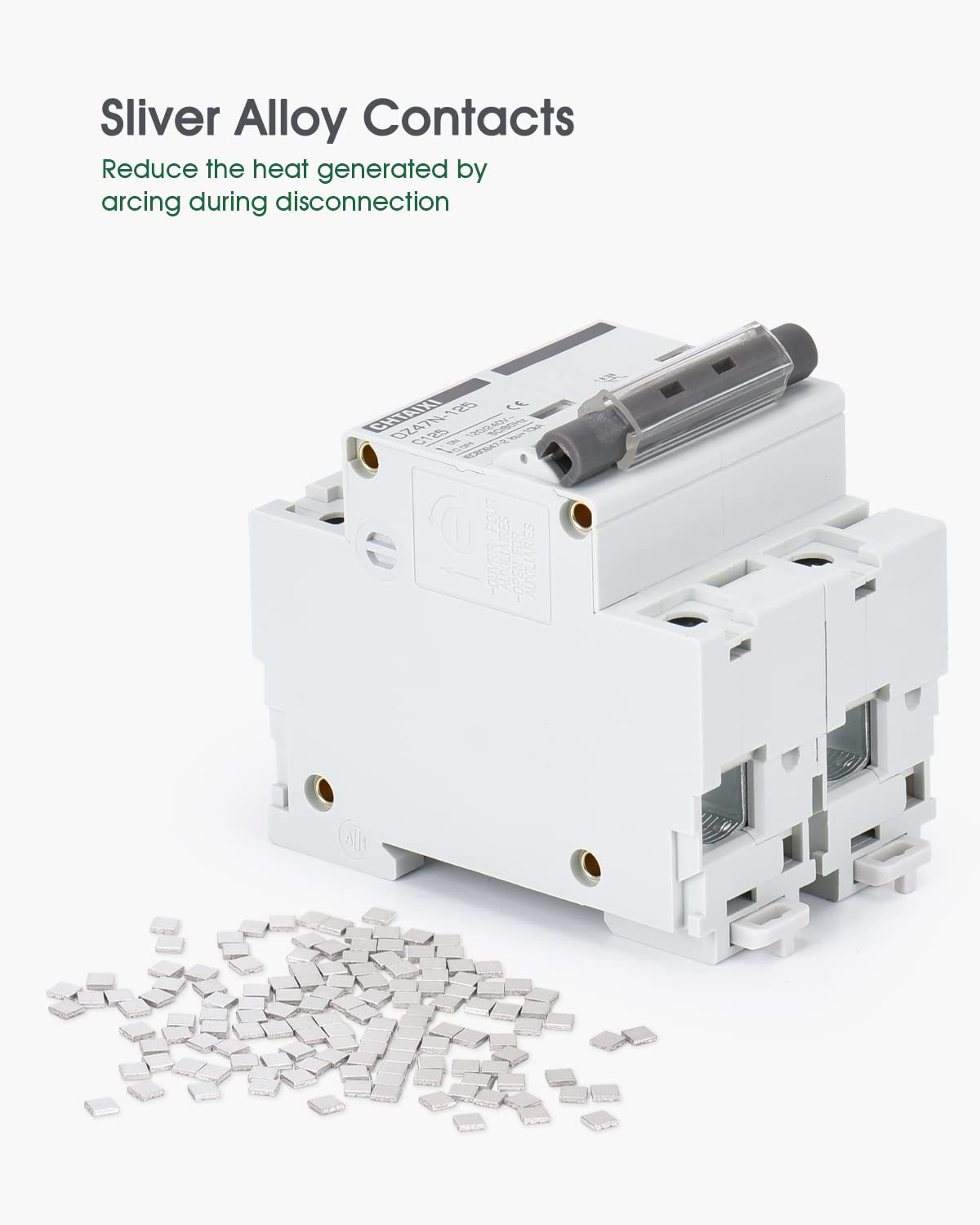

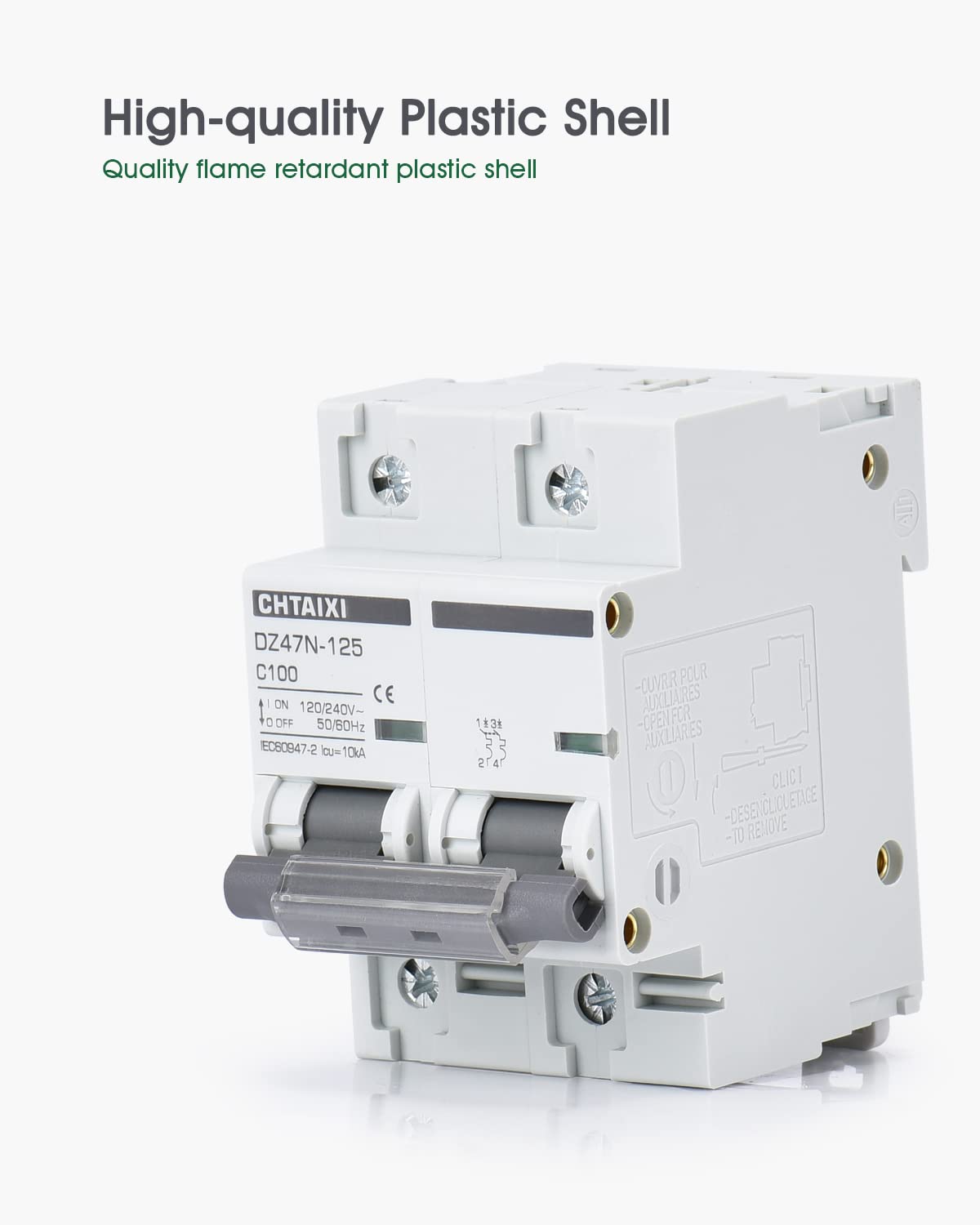

• QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
• APPLICATION: Can be used in solar ac systems, RV, home circuits, or other 50/60Hz AC systems.

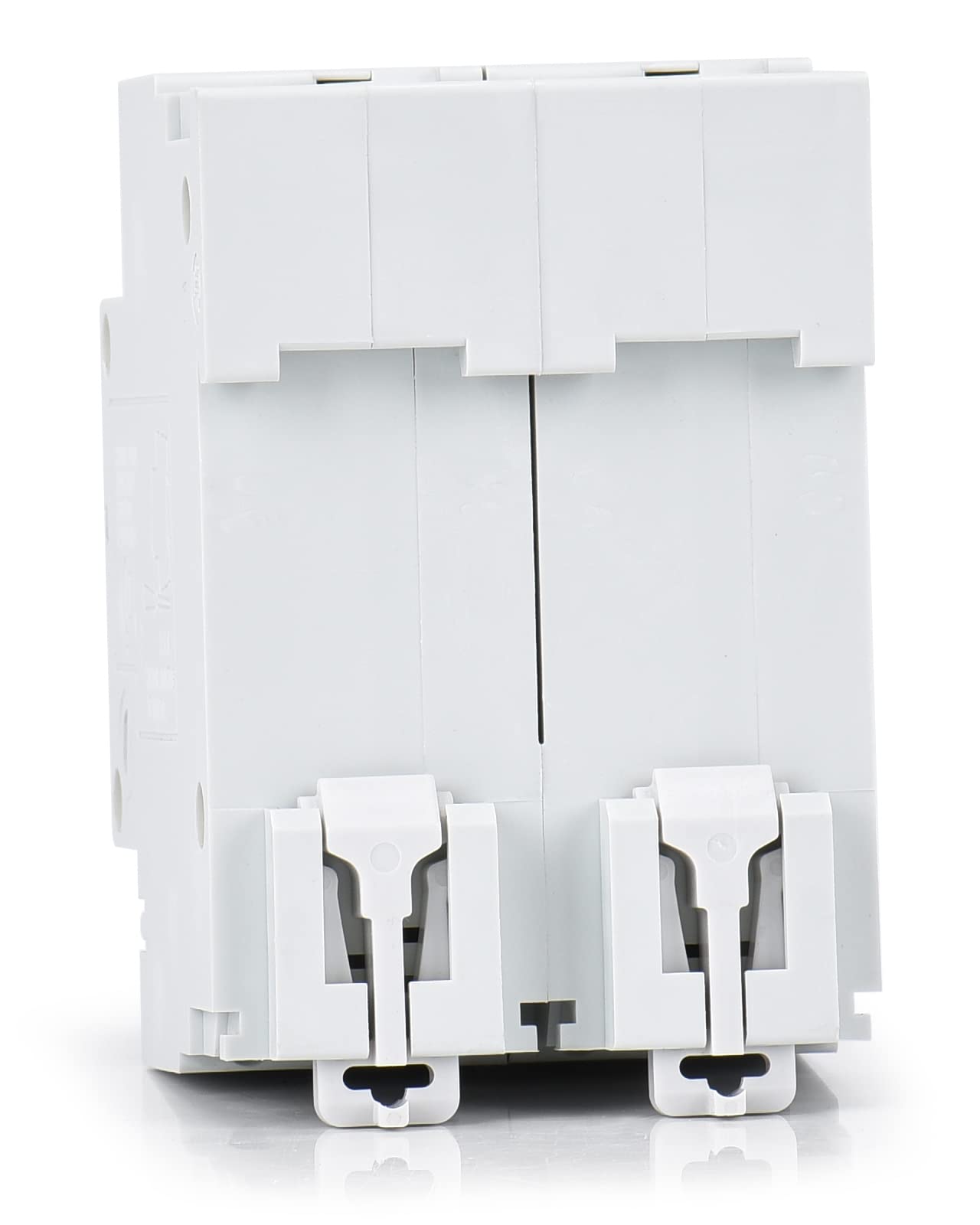

• INSTALLATION: 35mm DIN rail mount, screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first).

model number: 2 Pole

Part Number: 47N125

Package Dimensions: 3.7 x 3.5 x 2.2 inches
