BAYM Electric Co., Ltd is experienced in photovoltaic connector production. We has passed ISO9001 management system certification and China CQC certification. BAYM Solar Branch Connectors are used for parallel connection...
Vendor: LargerPower-your top choice for global energy storage procurement!
SKU: B093H111HL
Availability: In stock
$13.70 USD
$13.70 USD
Hurry up! Only 10 left
BAYM Solar Panel T Branch 4 to 1 4M/F + 4F/M Cable Connector Solar Wire Connector T-type T4 Coupler Combiner(1 Pair)
BAYM Solar Panel T Branch 4 to 1 4M/F + 4F/M Cable Connector Solar Wire Connector T-type T4 Coupler Combiner(1 Pair)
$13.70 USD
$13.70 USD
Product Product subtotal Quantity Price Product subtotal
BAYM Solar Panel T Branch 4 to 1 4M/F + 4F/M Cable Connector Solar Wire Connector T-type T4 Coupler Combiner(1 Pair)
BAYM Solar Panel T Branch 4 to 1 4M/F + 4F/M Cable Connector Solar Wire Connector T-type T4 Coupler Combiner(1 Pair)
$13.70/ea		 $0.00
$13.70/ea $0.00

BAYM Electric Co., Ltd is experienced in photovoltaic connector production.
We has passed ISO9001 management system certification and China CQC certification.

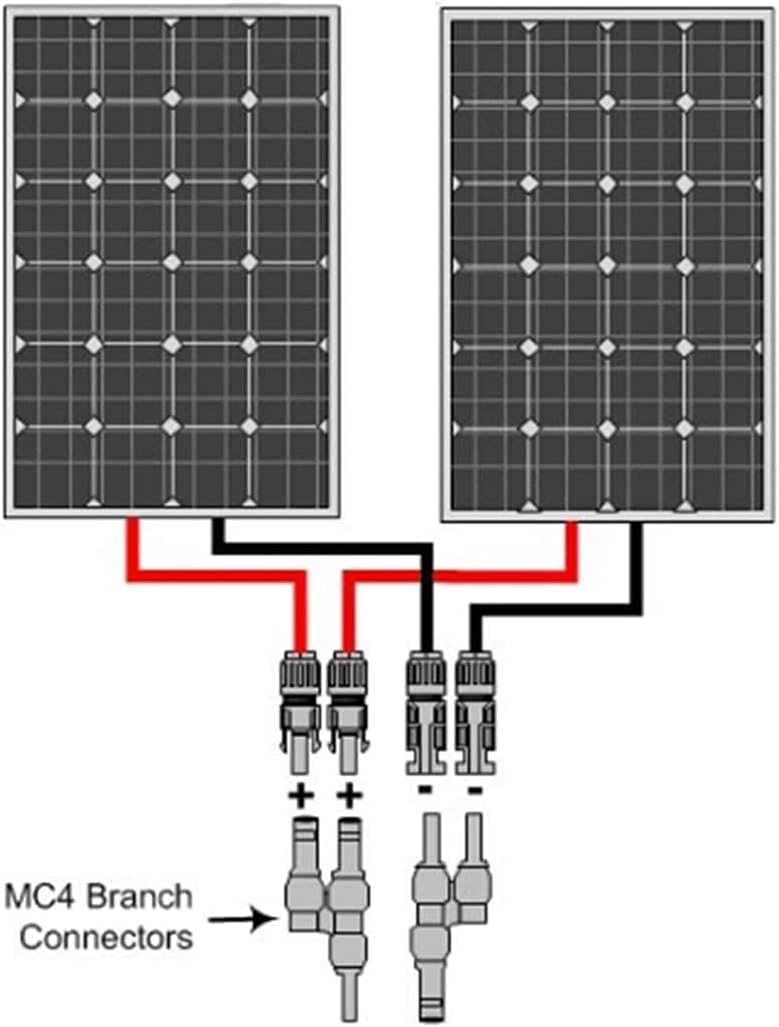

BAYM Solar Branch Connectors are used for parallel connection between solar panels(PV modules).
And it will maintain the voltage of your panel configuration to match your battery size.
Perfectly compatible with photovoltaic solar systems.

Specifications
❶Brand: BAYM
❷ Model: T4
❸Rated Current:30A
❹Insulation Material:PPO
❺ Contact Material: Copper Tin Plated
❻Rated Voltage:TUV 1000V DC / UL 600V DC
❼Test Voltage:TUV 6000V AC (50Hz,1Min)/UL 2200V DC (50Hz,1Min)
❽Contact Resistance:≤1mΩ
❾Pollution Degree:2
❿Safety Class: II
⓫Ambient Temperature:-40℃~+85℃
⓬Highest Temperature:+125℃
⓭Flame Class:UL94-V0
⓮Terminal Connection：Pressure Welding
⓯Insertion / Withdrawal Force: ≤50N / ≥50N
⓰Waterproof Class:IP67 suitable for outdoor harsh environments
⓱Suitable for Cables: 2.5mm²( AWG14 ), 4mm²( AWG12 ), 6mm²( AWG10 )

Package Include:
1 Pair * 4-in-1 Solar Branch Connectors:
(1pc* 4M/F Solar Branch Connector
1pc* 4F/M Solar Branch Connector)

Product Overview

  • Material: Copper
  • Brand: BAYM
  • Connector Type: T-connector
  • Exterior Finish: Copper
  • Item Weight: 0.2 Kilograms
  • Number of Pieces: 2
  • Manufacturer: BAYM Electric Co., Ltd
  • Unit Count: 1.0 Count

Product Features

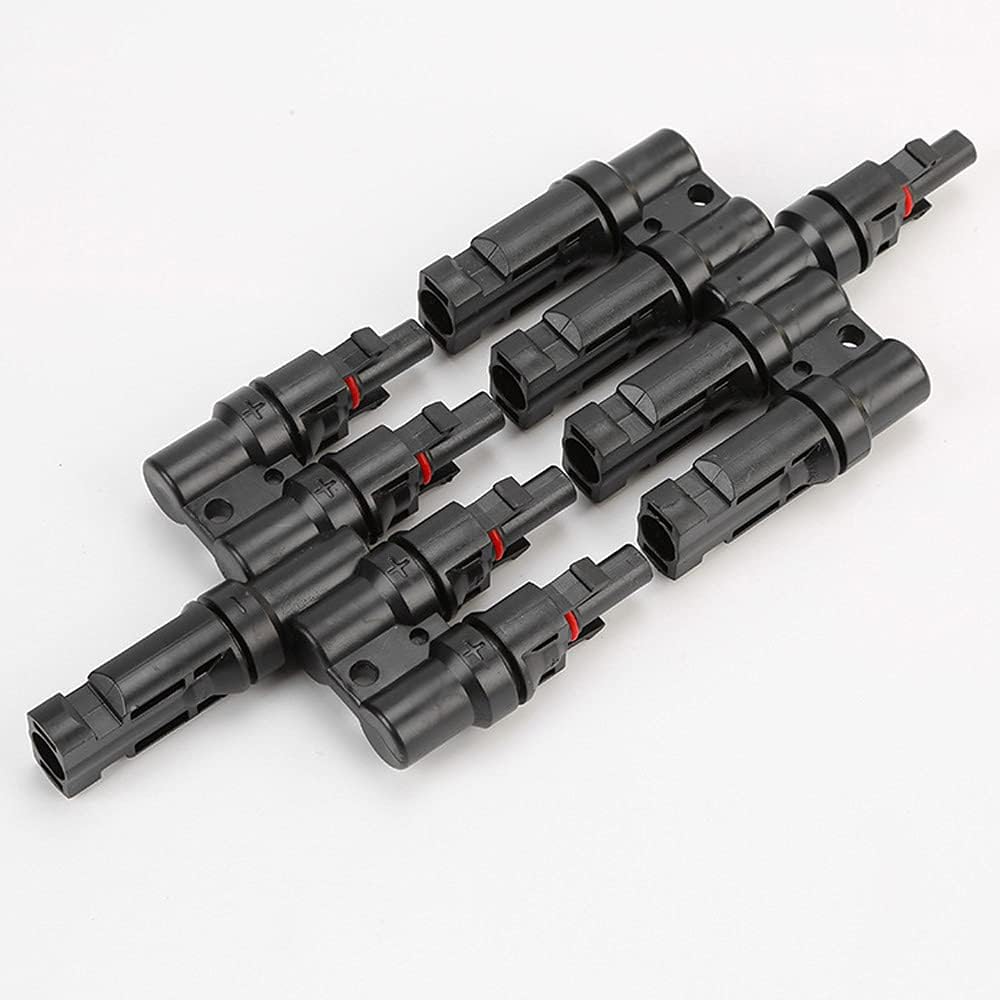

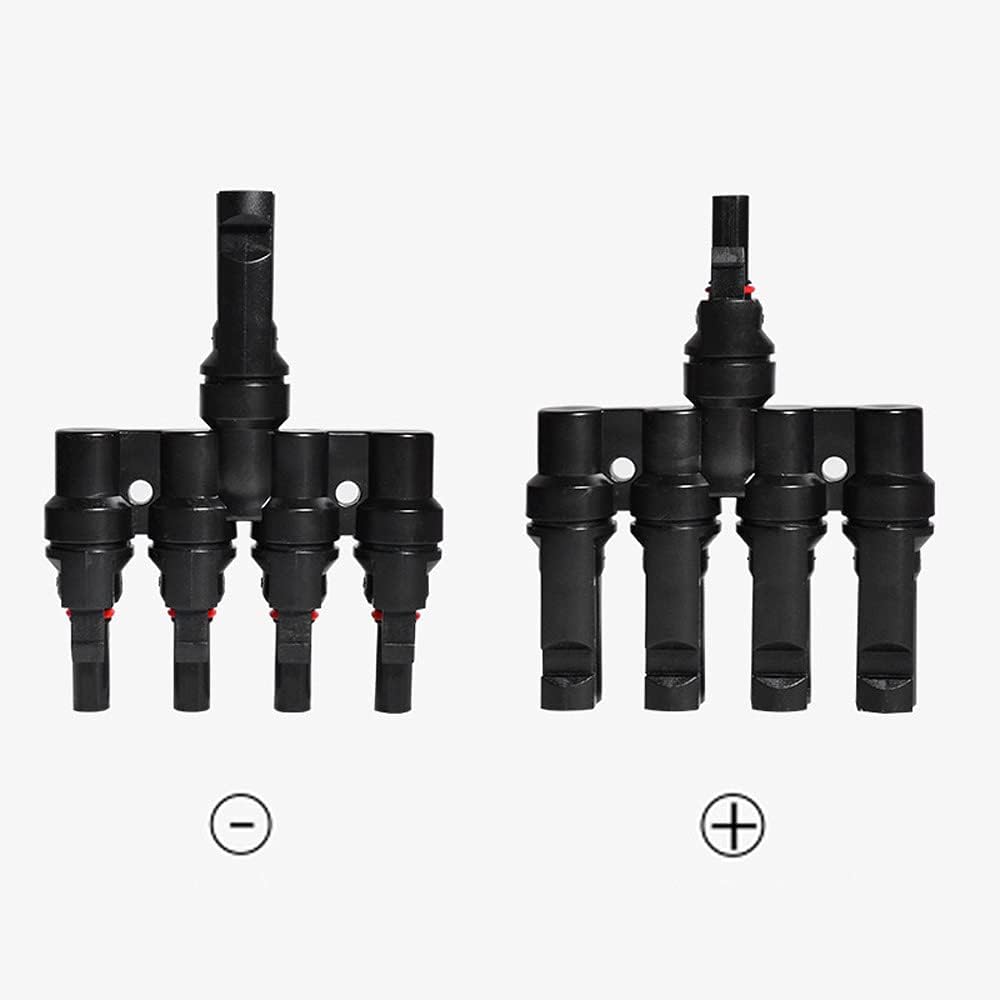

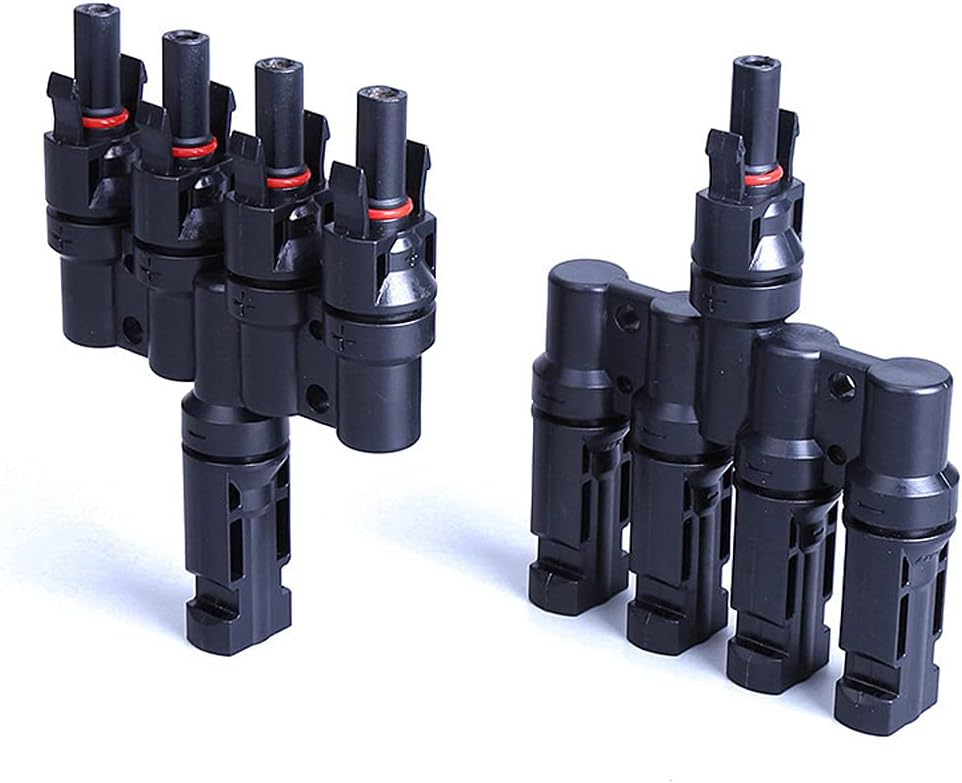

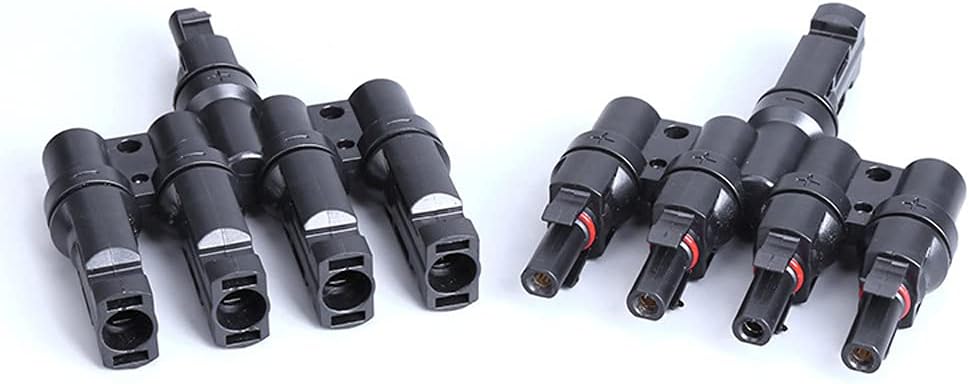

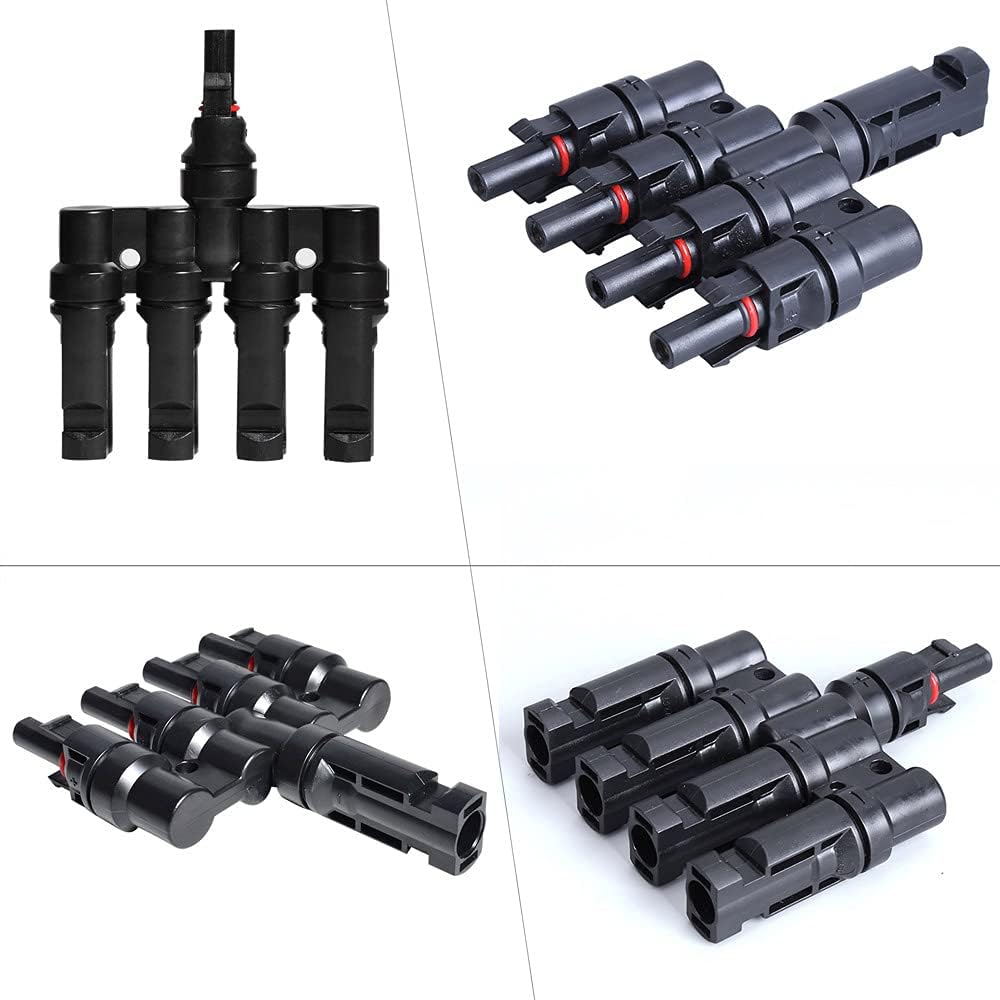

  • 【T4 Branch Connector】1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM). It is compatible with solar connectors in 10AWG to 14AWG. It could be used for connecting four solar panels in parallel.
  • 【Waterproof and Durable】 An IP67 WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion. It is stable and safe with the built-in lock which is durable in outdoors environment.
  • 【High Security】PPO insulation flame retardant material with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain,snowstorm or heat for a long time. The material ensures that it can works stably at a temperature of -40 ℃ ~ + 125 ℃.
  • 【Easy Installation】Male is easy to lock and open from Female.The connector is stable and safe with the built-in lock which is durable outdoors.
  • 【Customer Service】BAYM is experienced in photovoltaic connectors production. We are dedicated to provide customers with high quality product through constantly improvement with 24*7 friendly customer service.

Product Information

    Brand Name BAYM
    Number of Pieces 2
    Model Number PV-BM-1000V-T4-30A-1 pair
    Manufacturer BAYM Electric Co., Ltd
    Manufacturer Part Number PV-BM-1000V-T4-30A-1 pair
    Unit Count 1.0 Count
    Best Sellers Rank
    ASIN B093H111HL
    Customer Reviews
    Connector Type T-connector
    Item Weight 0.2 Kilograms
    Exterior Finish Copper
    Material Type Copper
