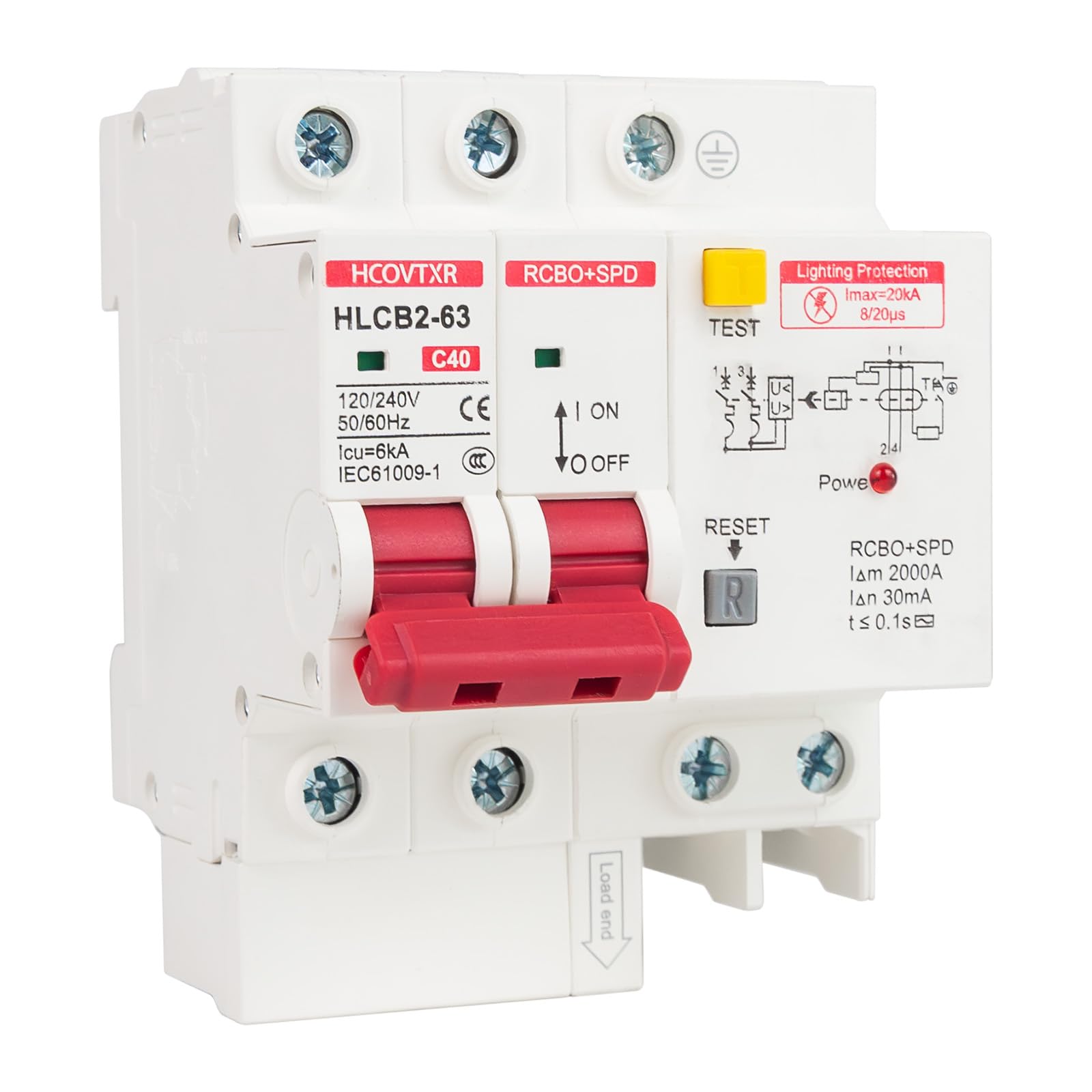

HCOVTXR 120V-240V Circuit Breaker with Leakage Protection,40 Amp RCBO and Surge Protector Breaker,DIN Rail Mount Ground Fault Circuit Breaker for Residential Industrial Outdoor

Brand: HCOVTXR

Color: White

Features:

• PARAMETER: Rated Current: 40 A; Rated Voltage: 120-240 VAC ;Surge Protection: 20 kA;Leakage Protection: 30 mA

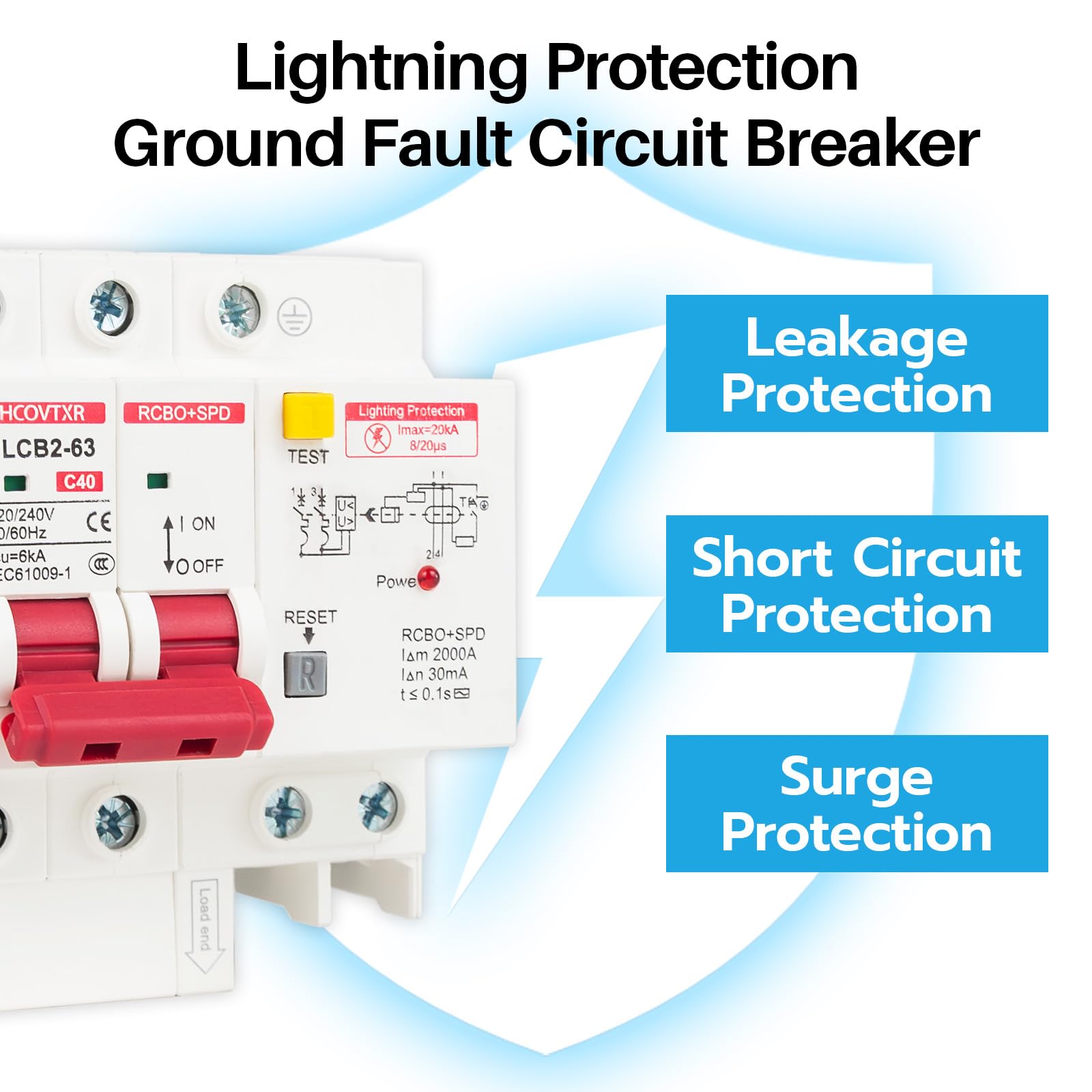

• PROVIDES 5-IN-1 PROTECTION: 2-pole solar circuit breaker offers surge, overcurrent, short circuit, 30mA leakage, and isolation protection for reliable system safety
• EASY INSTALLATION: Installs quickly on standard 10 CM DIN rail—ideal for distribution boxes and control panels

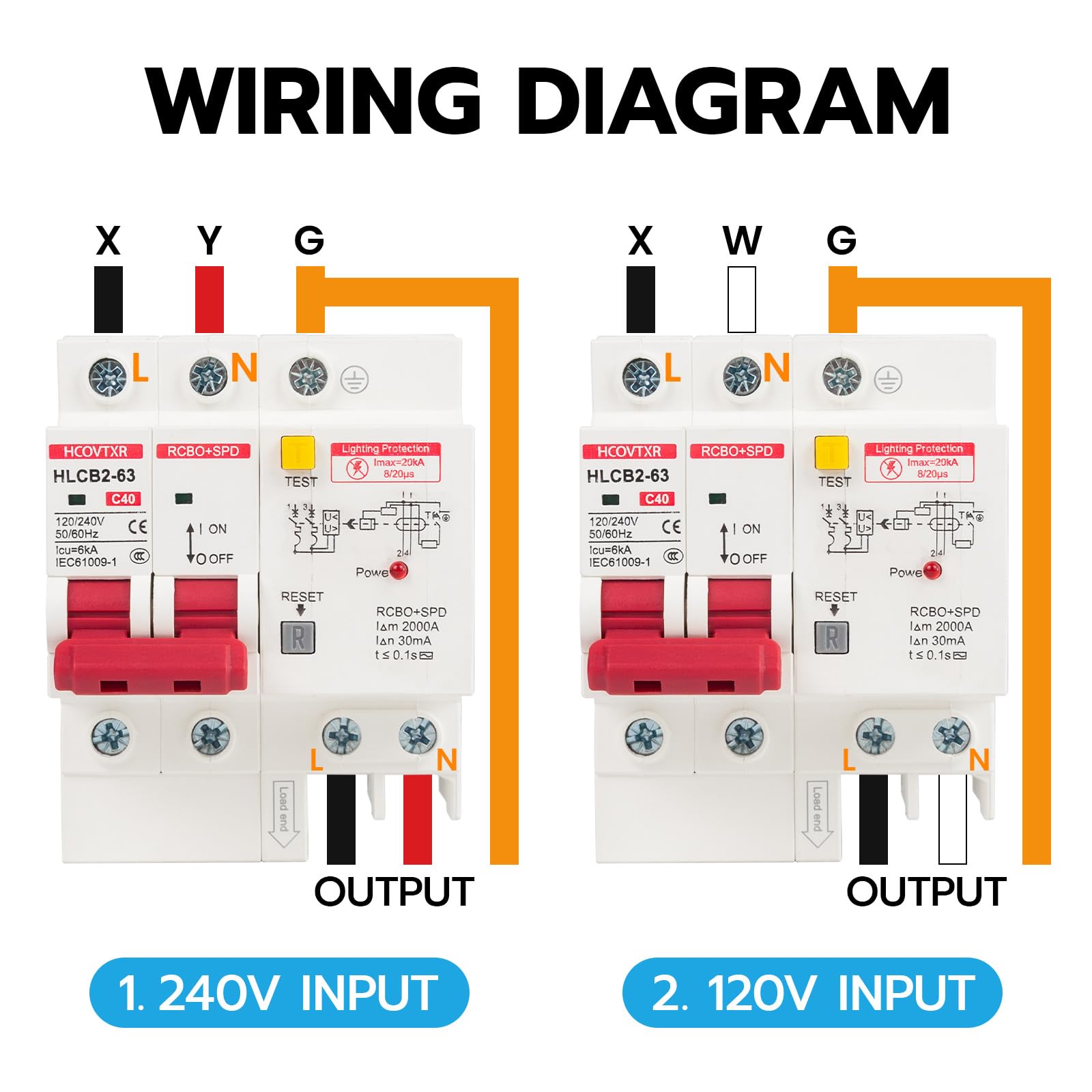

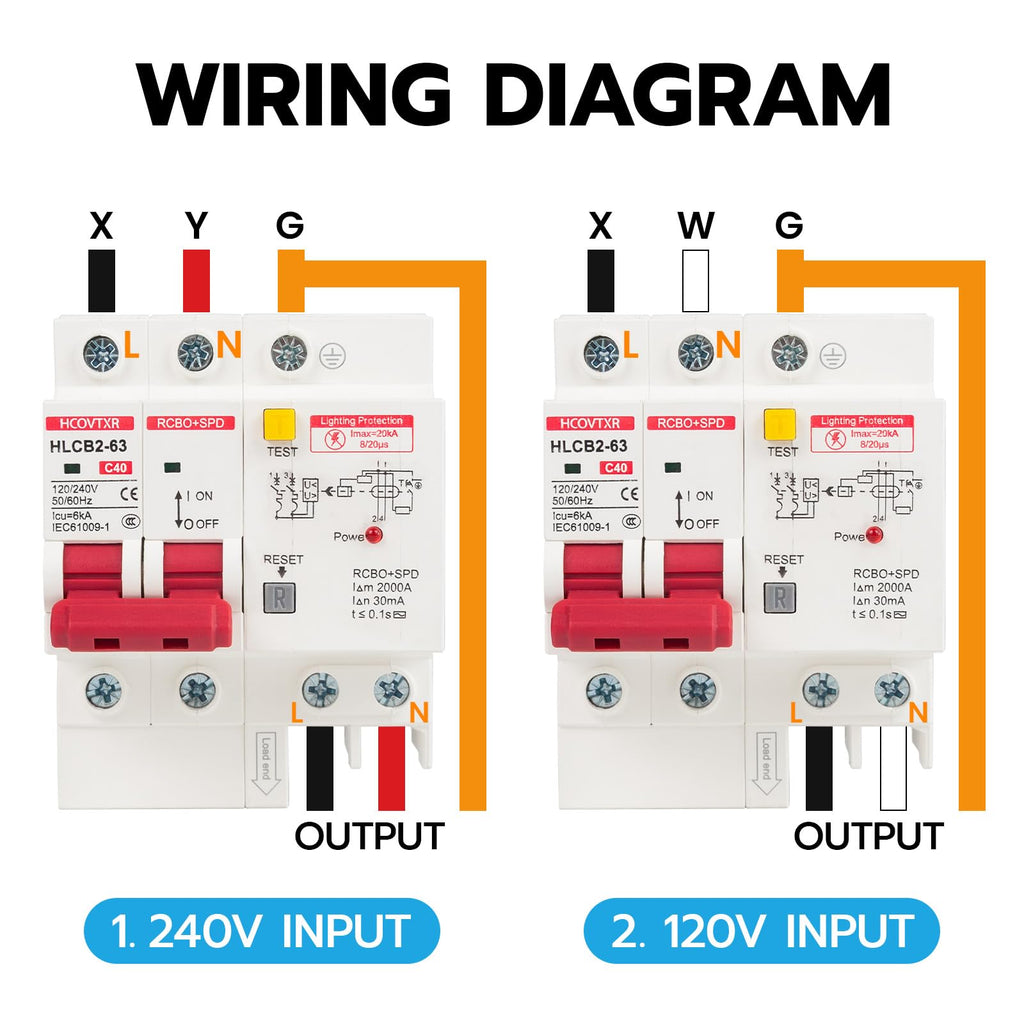

• WIRING INSTRUCTIONS: Upper input, bottom output; both input and output ground wires must connect to the ground terminal for proper function

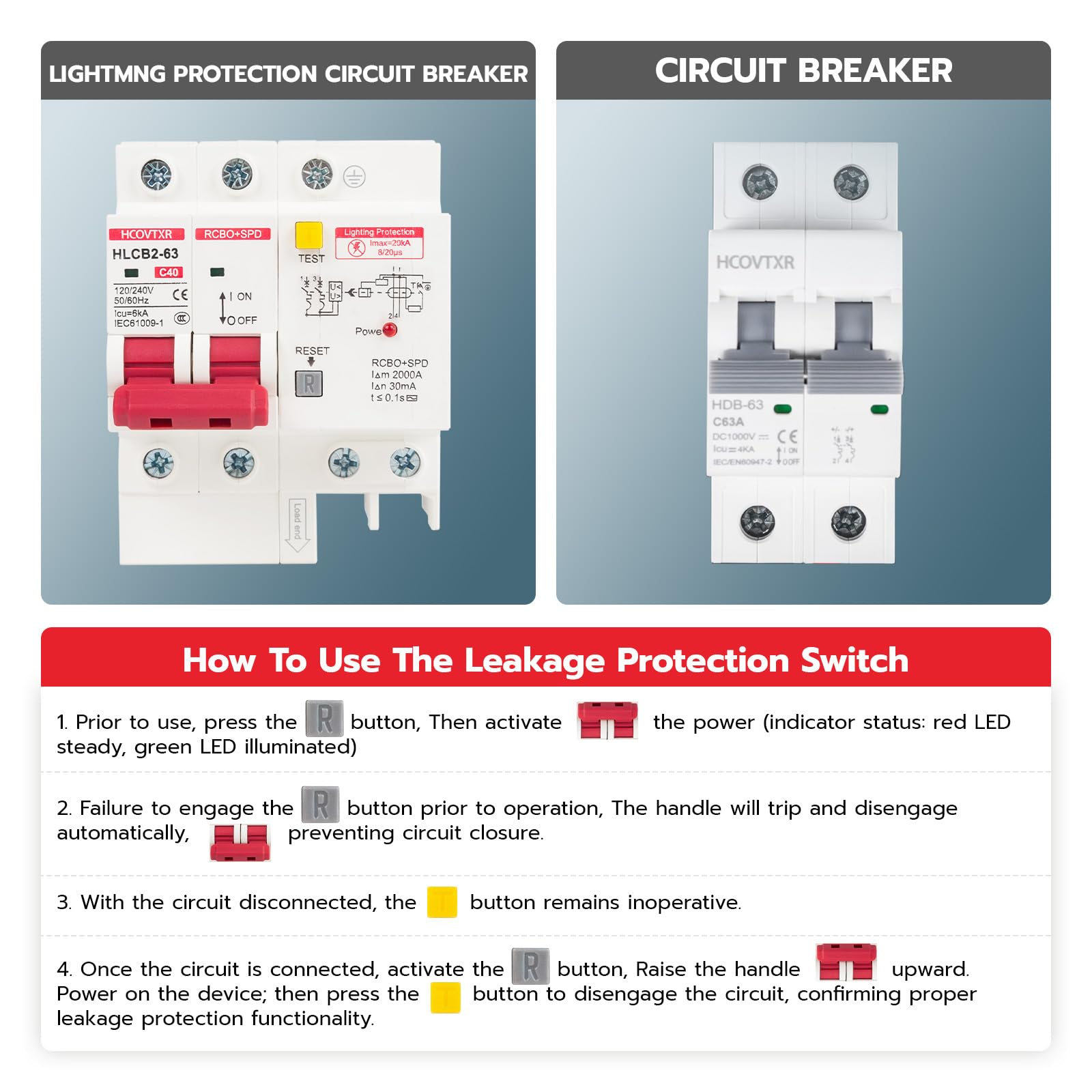

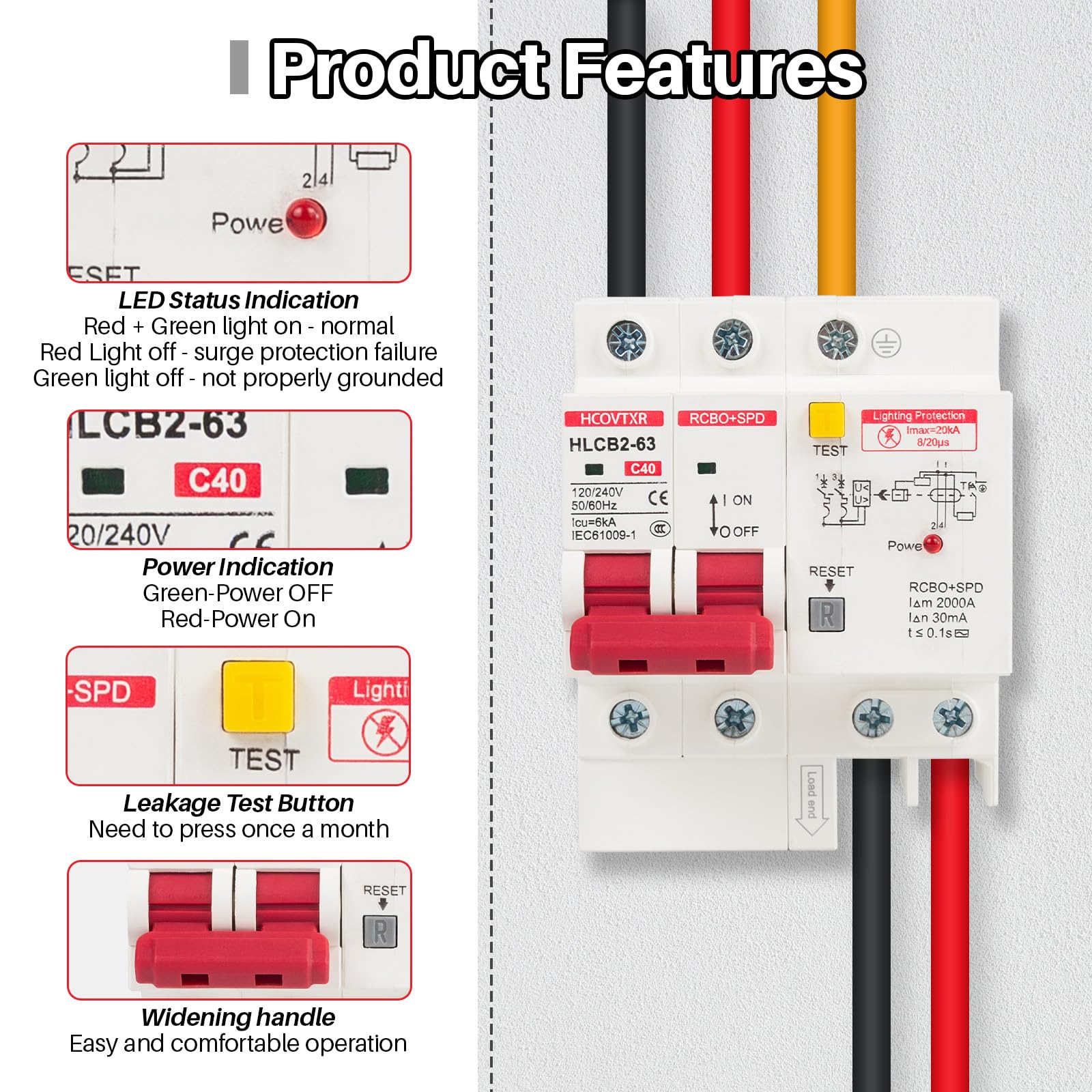

• TESTING INSTRUCTIONS: After wiring is complete, switch the handle ON. Red and green LEDs will light up to indicate normal status. Press the "T" button to test leakage function.
• WIDE APPLICATIONS: Ideal for residential, commercial,industrial,outdoor and lightning-prone areas

model number: 40 Amp

Part Number: HLCB-63-40A

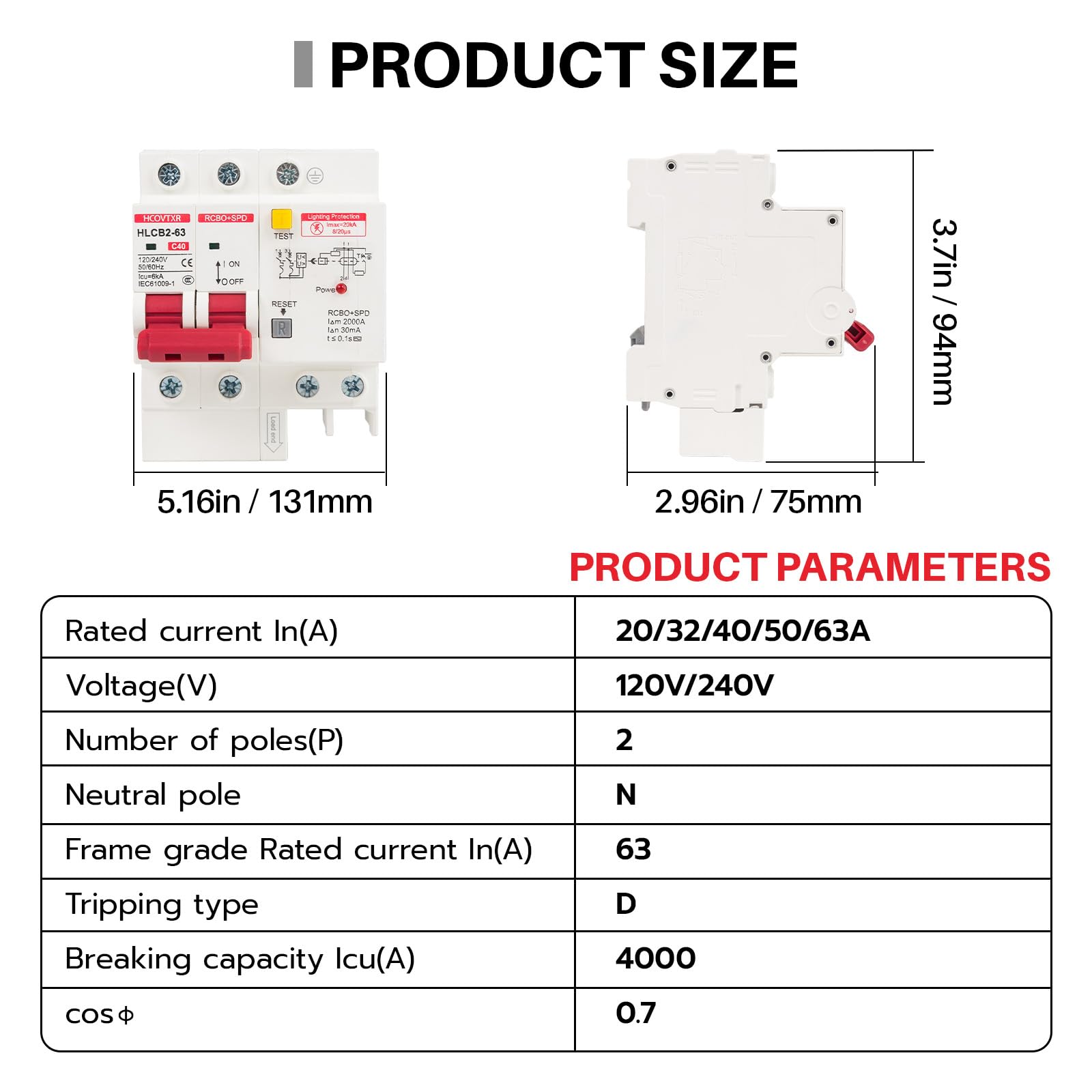

Package Dimensions: 4.6 x 4.0 x 3.9 inches
